Donut SW/AM/WB Loop Antenna Complete Set (1 x AM, 1 x SW, 1 x WB)

Upgraded broadband antenna, frequency range 10kHz-180MHz with low impedance converter, this model does not require cumbersome tuning, low frequency high frequency direct use, no need to replace the antenna, each band each frequency can be directly listening, strong compatibility, recommended with the use of Quan Sheng UV-k5/k6 walkie-talkies.

Features
1. omni-directional coverage: loop shape antenna design tends to make it has better omni-directional radiation characteristics, that is, in the horizontal plane in all directions of the signal transmission or reception is relatively uniform, suitable for broadcasting and multi-directional communication needs.
2. Wideband working ability: these antennas tend to cover a wide frequency range, including both medium wave (MF, Medium Frequency) and short wave (HF, High Frequency) bands, suitable for receiving or transmitting signals in multiple frequency bands.

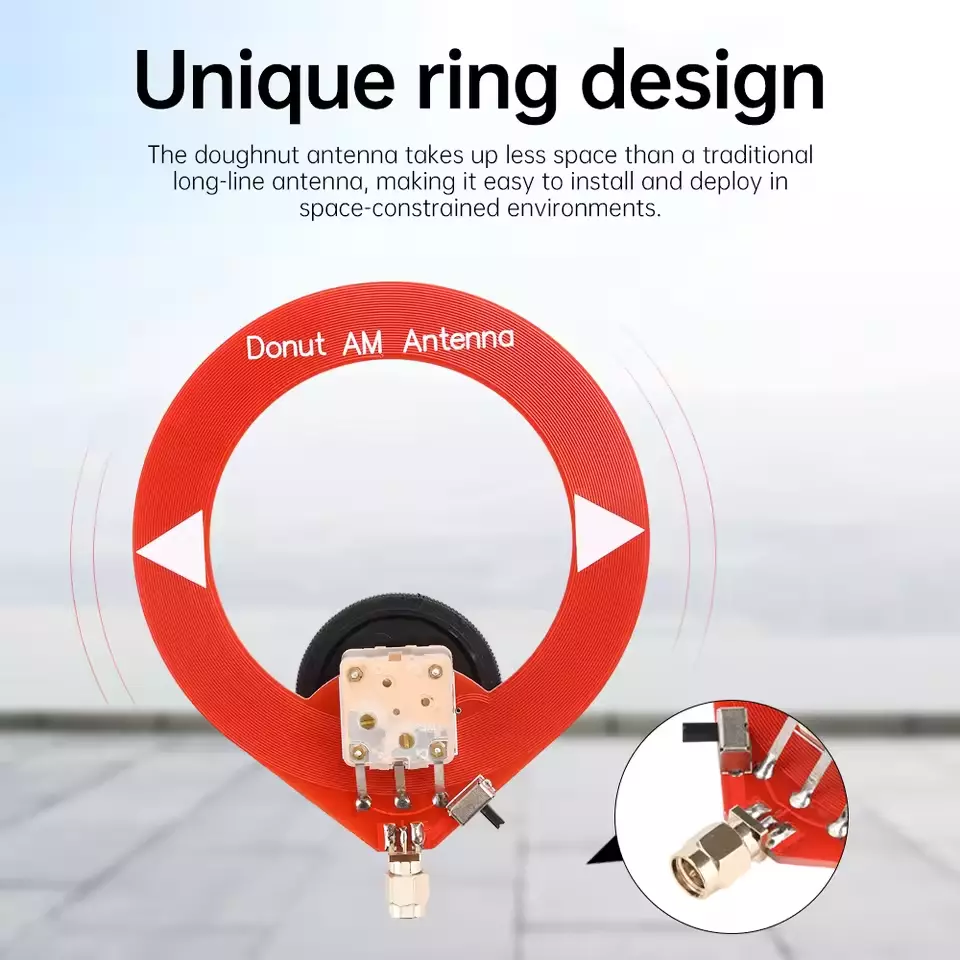

3. Space efficiency: Due to its unique loop design, the donut antenna occupies less space than traditional long wire antennas, making it easy to be installed and deployed in space-constrained environments.

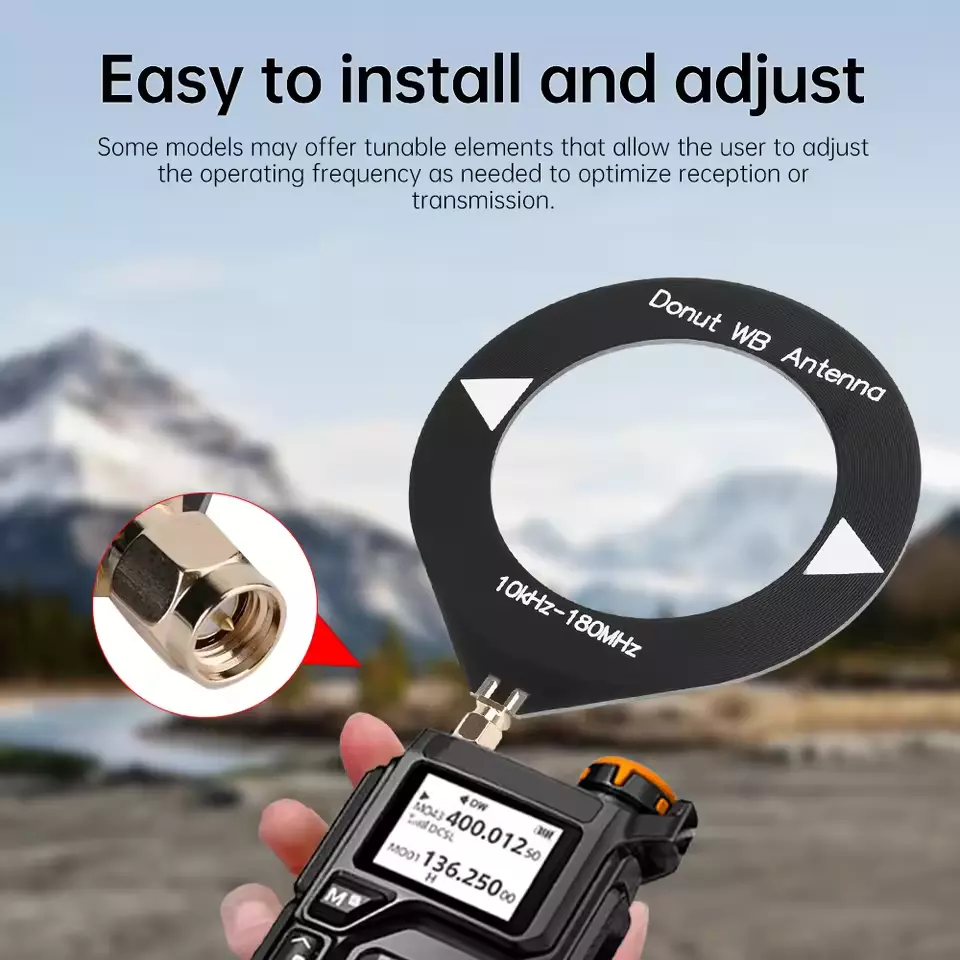

4. Easy Installation and Adjustment: Most designs are easy for users to install by themselves, and some models may provide tunable elements that allow users to adjust the operating frequency as needed to optimize reception or transmission.

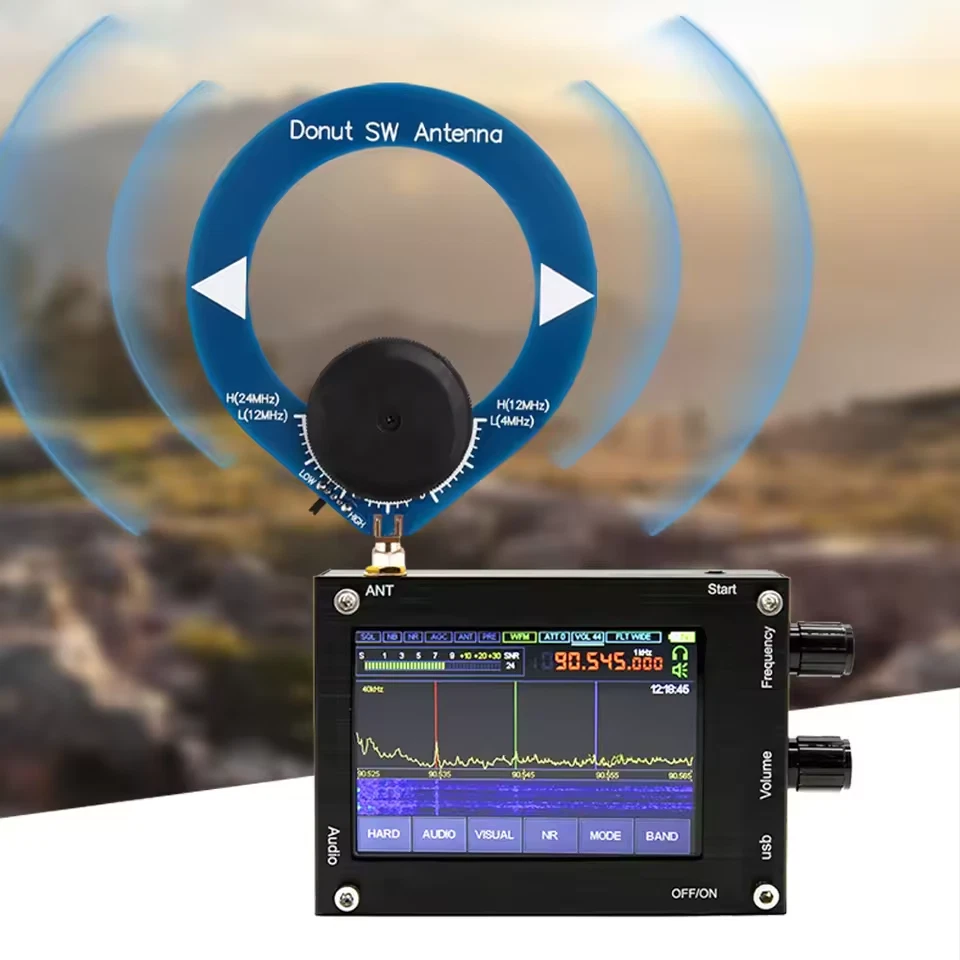

5. Multi-functional use: compact, easy to carry, with variable capacitor tuning function to improve signal reception, ideal for use with malachite receivers.

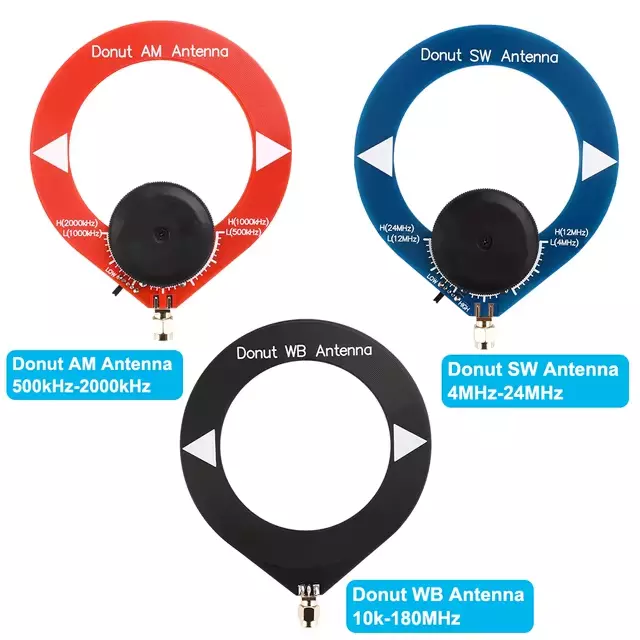

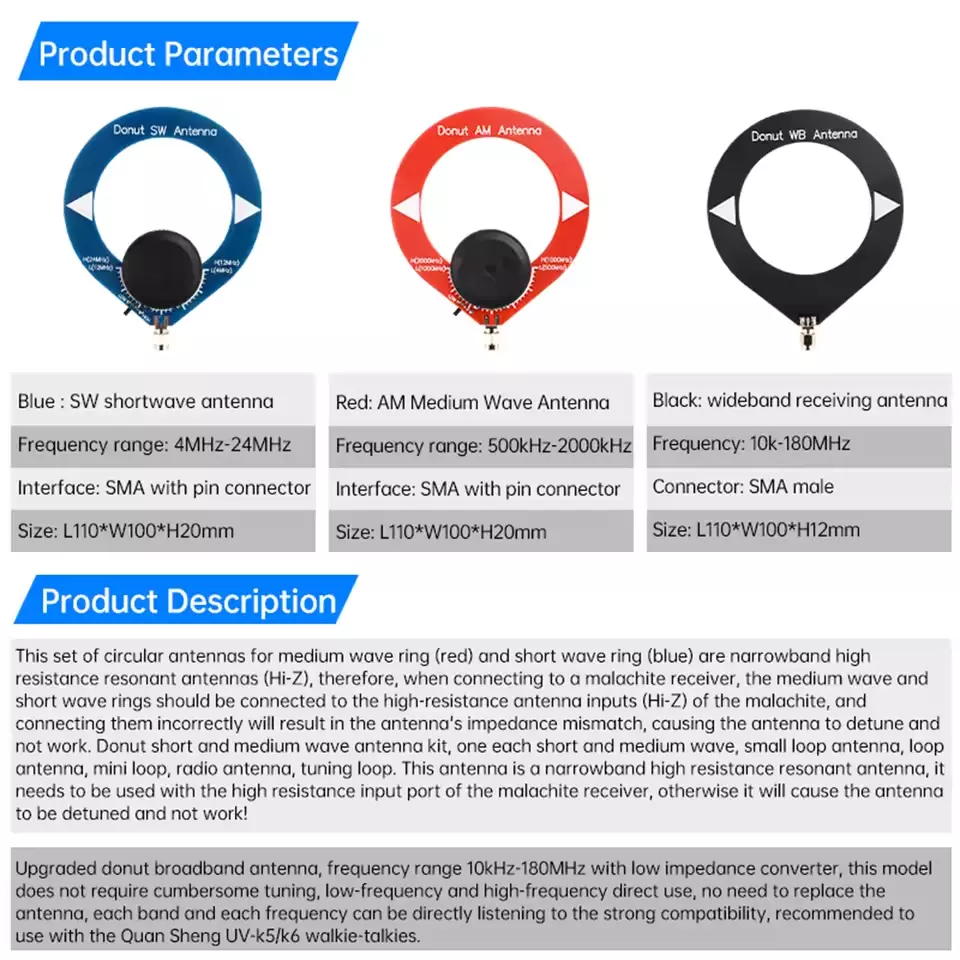

Specification
Blue color: SW Short Wave Antenna
Frequency range: 4MHz-24MHz
Interface: SMA with pin connector

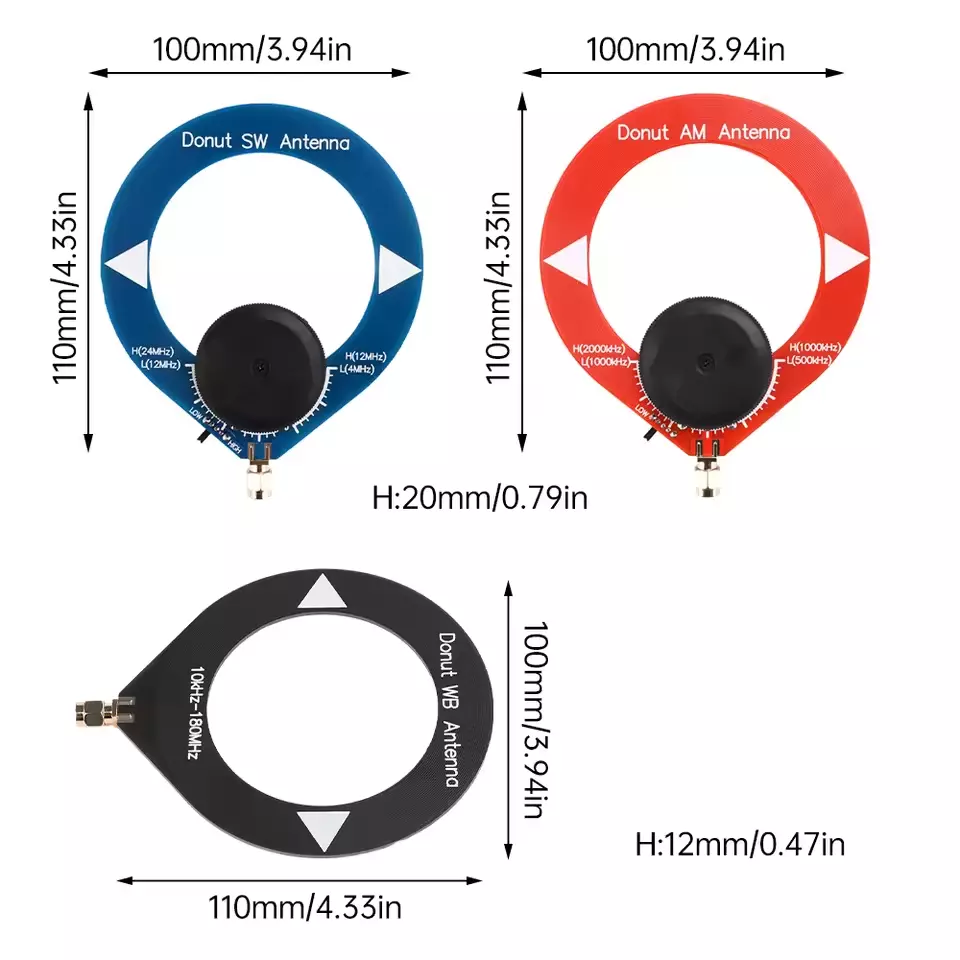

Dimension: L110*W100*H20mm

Red: AM Medium Wave Antenna
Frequency Range: 500kHz-2000kHz
Interface: SMA with pin connector
Size: L110*W100*H20mm

Black color: Wide Band Receiving Antenna
Frequency: 10k-180MHz
Connector: SMA male connector (internal needle and internal screw thread)
Size: L110*W100*H12mm

Product Description:
This set of circular antenna of medium wave ring (red) and short wave ring (blue) is narrowband high resistance resonant antenna (Hi-Z), therefore, when connecting with malachite receiver, the medium wave and short wave rings should be connected to the high resistance antenna input of malachite (Hi-Z), connecting it wrongly will result in the impedance mismatch of the antenna, which will cause the antenna detuned and can’t work.
Donut short and medium wave antenna kit, one each short and medium wave, small loop antenna, loop antenna, mini loop, radio antenna, tuning loop. This antenna is narrowband high resistance resonant antenna, need to be used with malachite receiver high resistance input port, otherwise it will cause the antenna detuned can not work!
